Introduction

Every naval architect, whether designing a canoe or a foiling yacht today, has always faced the same fundamental question.

How will this vessel behave once it reaches the water?

It is a deceptively simple question. A drawing may look elegant, calculations may appear convincing, and a computational model may predict remarkable performance. Yet until the vessel is built and tested, everything remains a guess.

For centuries, naval architecture has been an exercise in reducing uncertainty and setting safety margins. Every new method—from empirical rules developed by master shipwrights to towing tanks and modern Computational Fluid Dynamics—has pursued exactly the same objective: understanding the behavior of a vessel before committing to its construction.

What has changed over time is not the question itself, but our ability to answer it.

Predicting the Unknown

Long before numerical simulation became available, naval architects relied almost entirely on accumulated experience. Successful hulls became the starting point for the next generation of designs, while unsuccessful ones quietly disappeared from the drawing board. Progress was slow but continuous, driven by observation, experimentation, and the gradual refinement of proven solutions.

In many ways, the design process resembled natural selection: effective, because good ideas survived, but far from efficient, as every advance required time, resources, and repeated trial and error.

Yet experience alone does not necessarily lead to understanding. Without revealing the underlying physics and the chain of cause and effect, progress risks becoming a form of engineering folklore. Successful designs are copied, unsuccessful ones discarded, but the reasons behind their success often remain obscure. This can foster a kind of «magical thinking», where exceptional designers acquire an almost mythical status, seemingly able to look at a hull and instinctively understand how the flow will behave.

At the beginning of the twentieth century, while physics was profoundly reshaping our understanding of the natural world, the emergence of aviation provided a powerful catalyst for the development of modern fluid mechanics. The need to understand lift, drag, stability, and boundary layers transformed aerodynamics from an empirical discipline into a quantitative science. Naval architecture soon benefited from the same advances, progressively replacing intuition and accumulated experience with a deeper understanding of the physical mechanisms governing the flow around a hull

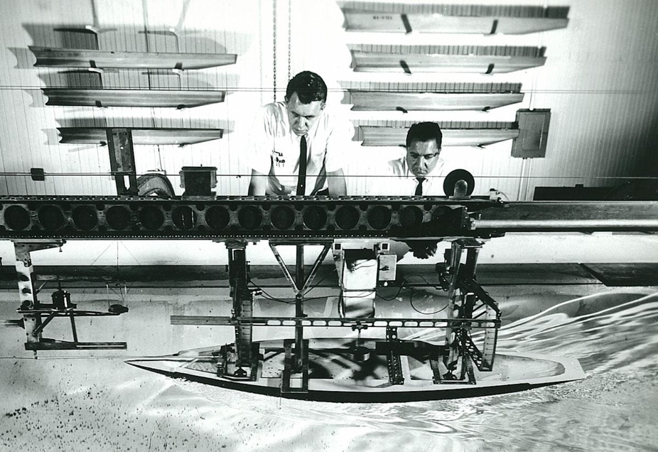

The introduction of model testing represented a profound change. For the first time, designers could evaluate competing solutions under controlled conditions before building a full-scale vessel. Towing tanks became laboratories where intuition could be confronted with measurable data, allowing naval architecture to evolve from a largely empirical discipline into a more rigorous engineering science.

Even then, prediction remained expensive. Building several models, testing them under different conditions and analyzing the results, required considerable time and resources. Consequently, only a limited number of alternatives could realistically be explored.

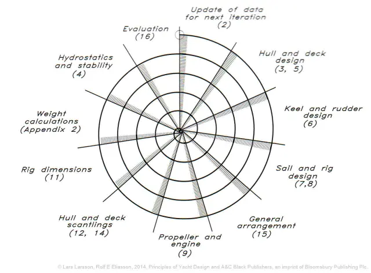

The Design Spiral Revisited

Although the tools have changed dramatically, the design process itself has remained remarkably consistent.

Every vessel evolves through a continuous sequence of interconnected decisions. Displacement determines hull shape, stability and resistance; resistance influences propulsion requirements; propulsion affects weight, GA, economical evaluation and so on… in an ideally endless spiral loop.

This classical design spiral is not merely a convenient representation of naval architecture. It reflects the reality that no design parameter exists in isolation. Improving one aspect inevitably influences many others. Reducing resistance may alter the flow arriving at the propeller. Modifying hull geometry to improve seakeeping may affect maneuverability. Increasing fuel capacity may extend range while changing trim and powering requirements.

Performance prediction is therefore far more than calculating resistance. It is the process of understanding how these interactions evolve as the design matures.

Beyond a Single Number

It is tempting to describe a vessel using a handful of figures: maximum speed, installed power or fuel consumption. In reality, none of these values adequately represent the behavior of a ship.

A naval architect is equally interested in how the vessel trims as speed increases, how the wake develops around the propeller, how motions evolve in irregular waves, how course-keeping changes in following seas, or how different loading conditions modify the operational envelope.

Performance is not defined by a single operating point. It is defined by how the vessel responds across the range of conditions it is expected to encounter during its lifetime.

The challenge is not to predict one answer, but to understand a complex system whose behavior continuously changes with speed, displacement, sea state and mission profile.

Seeing What Was Once Invisible

Perhaps the greatest contribution of Computational Fluid Dynamics is not that it produces more colorful images or more precise resistance values. Its real value lies elsewhere. CFD allows engineers to observe physical phenomena that were previously inaccessible or extremely difficult to quantify.

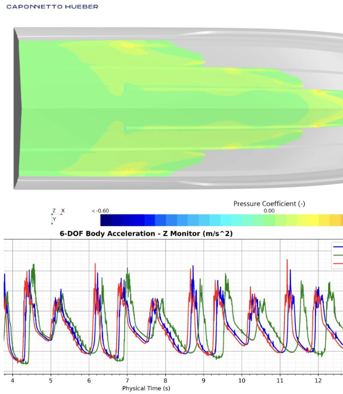

• Pressure and shear forces distribution.
• Streamlines and the development of vortical structures.
• Wake quality upstream of a propeller.
• Flow separation under changing attitudes.
• Dynamic sinkage and trim.

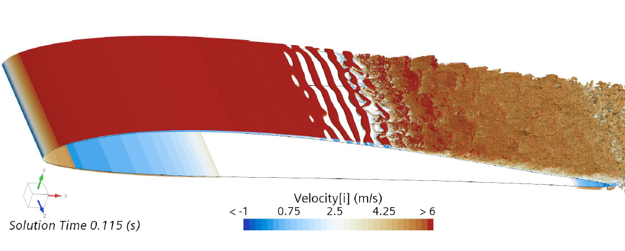

• Flow transition.

These are not simply numerical outputs. They are pieces of information that help explain why a particular design behaves as it does. This distinction is fundamental. Engineering progresses not only by obtaining better results, but by understanding the mechanisms that produce them.

Engineering Judgment in the Age of CFD

There is sometimes a tendency to assume that increasing computational power automatically produces better designs. Experience suggests otherwise.

Numerical simulations do not replace engineering judgement any more than a towing tank replaced the naval architect who interpreted its results.

Every simulation begins with assumptions. Boundary conditions must be selected, turbulence models chosen, computational domains defined and operating conditions identified. The quality of the prediction depends not only on numerical accuracy but on asking the right engineering questions from the outset.

CFD has therefore changed the role of the designer less than many imagine.

Rather than replacing experience, it has amplified its value. The engineer who understands the physics behind the simulation remains the engineer who extracts the greatest value from it.

Prediction as a Design Tool

Perhaps the greatest advantage of modern performance prediction is not the ability to validate a design.

It is the freedom to explore alternatives long before decisions become irreversible. Hull geometries can be compared. Propulsion arrangements evaluated. Appendages refined. Loading conditions investigated. Operational scenarios simulated.

Many solutions that once required expensive prototypes can now be assessed numerically in the early stages of development, allowing weak concepts to be discarded and promising ideas to mature long before construction begins.

Prediction has therefore become an integral part of the creative process itself. Rather than confirming a design, it actively contributes to shaping it.

Conclusion

For thousands of years, naval architects have sought to answer the same question before launching a new vessel: How will it behave once it reaches the sea?

The methods have evolved from accumulated experience to experimental testing and, more recently, to high-fidelity numerical simulations. Yet the objective has never changed.

Performance prediction is not about forecasting a maximum speed or selecting an engine. It is about understanding the consequences of every design decision before those decisions become steel, composite or aluminum.

Modern CFD has brought an extraordinary level of insight into this process. Not because it eliminates uncertainty altogether, but because it allows uncertainty to be understood, quantified and managed with a level of confidence unimaginable only a generation ago.

Ultimately, the purpose of prediction is not to replace the judgement of the naval architect. It is to give that judgement a firmer foundation.
